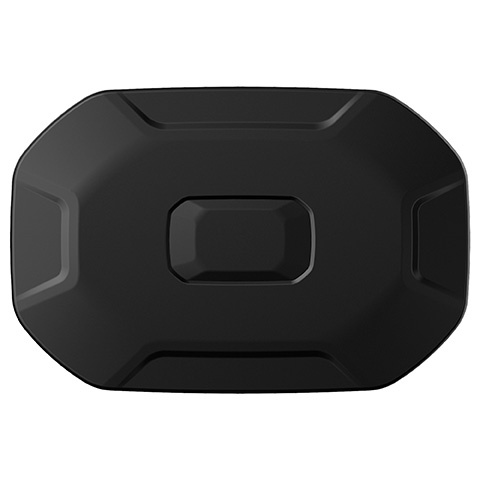

  • TA71 LED mini lightbar series top view

TA71 LED Mini Lightbar

Overview

TA71 series LED mini light bar to deliver 360° emergency lighting coverage during the day or nighttime, ensuring your safety on or off the road. It is great for emergency vehicles, postal service, construction vehicles, safety warning etc. 40 PCS high-intensity LEDs with high visibility deliver great vibrant colors(amber/red/blue). IP67 waterproof design ensures year-round functionality.

Features

  • SAE J845 Class 1 and CISPR 25 Class3 Certified, virtually no RFI/EMI radiation
  • Fully encapsulated for moisture, vibration and corrosion resistance
  • 40 PCS high-intensity LEDs to provide consistent warning performance
  • Strong polycarbonate cover and lens are all finely molded with streamline appearance
  • Innovative design with fewer components ensure stability during extended dwell time
  • 12 optional flash patterns and can be customized
  • Ultra-slim body, only 37mm high
  • 360° fully glowing surface with strong overall visual effects
  • Magnet mounting model meets ISO-4148 standard
  • 3 mounting models available(4 bolts, magnet, bracket)
  • 2-year warranty.
Get A Quote
  • Specifications
  • Dimensions
  • Mounting
  • Approvals ECE R10/CISPR 25 Class3, ECE R65 Class 1/SAE J845 Class 1
    LEDs 40 PCS*0.5W/40 PCS*1W
    Light color Amber/Red/Blue/Red+Blue
    Operating voltage 12/24V
    Operating temperature  -30℃~ +65℃
    Wires Red: Positive(+)
    Black: Negative(-)
    Yellow: Pattern Switch
    Cable length 500mm cable/2500mm cable+plug for magnet mounting
    Cover PC
    Lens PC
    Mounting Bolt/Magnet/Bracket
    Waterproof IP67
    Net weight By bolt 770g/PC; By bracket 1010g/PC; By magnet 1080g/PC
    Packing Inner box: 300x200x48mm
    Outer box: 530x310x210mm
    Qty.: 10 PCS/Carton
    Warranty 2 Years
  • Mounted by 4 bolts Mounted by 2 PCS magnet Mounted by 2 PCS bracket
