TA81 LED Beacon - Smartsun
  • TA81 series LED beacon Amber color lighting effect
  • TA81 series LED beacon Red color lighting effect
  • TA81 series LED beacon Blue color lighting effect
  • TA81 series LED beacon with clear color len power off
  • TA81 series LED beacon with cable view
  • TA81 series LED beacon exploded view
  • TA81 series LED beacon Magnet mounting bottom view
  • TA81 series LED beacon Screw mounting bottom view
  • TA81 series LED beacon Magnet mounting with plug view

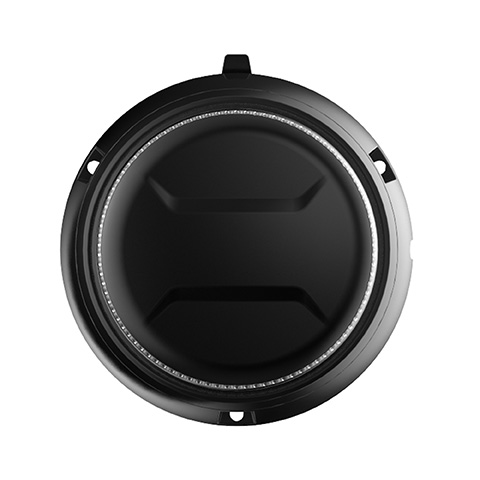

  • TA81 series LED beacon top view
  • TA81 series LED beacon DIN pole mounting bottom view
  • TA81 series LED beacon DIN pole mounting front view

TA81 LED Beacon

Overview

TA81 series (84mm height) LED beacon light is designed to get attention, with colors, intensity, and flashing rate that strongly deliver a sense of emergency. It can provide an excellent 360-degree warning illumination for police, fire, and rescue vehicles, as well as for tow trucks, snowplows, school buses, and warehouse forklift trucks.

Features

  • ECE R10, SAE J845 Class 1 and CISPR 25 Class3 Certified, virtually no RFI/EMI radiation
  • Fully encapsulated for moisture, vibration and corrosion resistance
  • 16 PCS high-intensity LEDs to provide consistent warning performance
  • Low profile, aluminum die casting outer dome and extruded aluminum platform ensure stability during extended dwell time and long life dependability
  • Screw mounting include 500mm cable
  • 12 optional flash patterns and can be customized
  • Magnet mounting model meets ISO-4148 standard
  • 3 mounting models available (screw, magnet, DIN pole)
  • 2-year warranty
Get A Quote
  • Specifications
  • Dimensions
  • Mounting
  • Approvals ECE R10/CISPR 25 Class3, ECE R65 Class 1/SAE J845 Class 1
    LEDs 16 PCS * 1W
    Colors Amber/Red/Blue/Red+Blue
    Operating voltage 12/24V
    Operating temperature  -30℃~ +65℃
    Wires Red: Positive(+)
    Black: Negative(-)
    Yellow: Pattern Switch
    Cable length 500mm cable/2500mm cable+plug for magnet mounting
    Housing PC
    Cover Aluminium die-casting
    Lens PC
    Mounting Screw/Magnet/DIN pole
    Waterproof IP67
    Net weight By screw 465g/PC; By magnet 730g/PC; By DIN pole 480g/PC
    Packing Inner box: 130x130x170mm
    Outer box: 410x275x360mm
    Qty.: 12 PCS/Carton
    Warranty 2 Years
  • Mounted by 3 PCS ST3.5*16 stainless steel screws Mounted by 1 PC magnet Mounted by DIN pole
