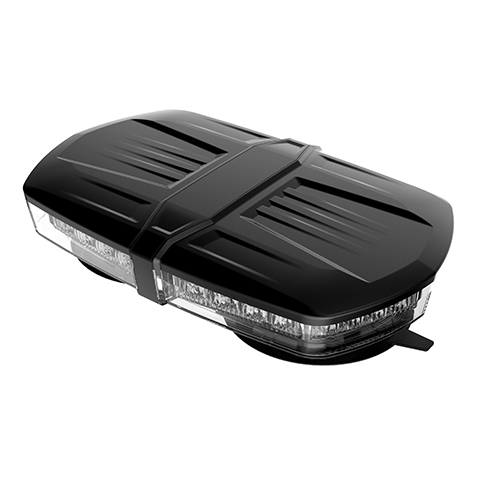

  • TA94 LED 9 inches lightbar series with clear lens (power off)
  • TA94 LED 9 inches lightbar series exploded view
  • TA94 LED 9 inches lightbar series bolt mounting bottom view
  • TA94 LED 9 inches lightbar series with cable view
  • TA94 LED 9 inches lightbar series bracket mounting bottom view
  • TA94 LED 9 inches lightbar series magnet mounting bottom view
  • TA94 LED 9 inches lightbar series with plug controller

TA94 9 Inches Mini Lightbar

Overview

TA94 9-inches light bar is a real slim model. It delivers 360° emergency lighting coverage during the day or nighttime, ensuring your safety on or off the road. It is great for emergency vehicles, postal service, construction vehicles, safety warnings, etc. 32 pcs high-intensity LEDs with high visibility deliver great vibrant colors(amber/red/blue). IP67 waterproof design ensures year-round functionality.

Features

  • ECE R10/CISPR 25 Class3/ECE R65 Class 1/SAE J845 Class 1 Certified, virtually no RFI/EMI radiation
  • Fully encapsulated for moisture, vibration and corrosion resistance
  • 32 high quality LED modules to provide consistent warning performance
  • Strong polycarbonate cover and lens are all finely molded with a streamlined appearance
  • Innovative design with fewer components ensure stability during extended dwell time
  • 2 bolts mounting include 500mm cable
  • 12 optional flash patterns and can be customized
  • 360 fully glowing surface with strong overall visual effects
  • Magnet mounting model meets ISO-4148 standard(lightbar mount tightly even under emergency braking )
  • 3 mounting models available(2 bolts, magnet, bracket)
  • 2-year warranty
Get A Quote
  • Specifications
  • Dimension
  • Mounting
  • Approvals ECE R10/CISPR 25 Class3, ECE R65 Class 1/SAE J845 Class 1
    LEDs 32pcs*0.5W
    Colors Amber/Red/Blue/Red+Blue/Amber+White
    Operating voltage 12~24V
    Operating temperature  -30℃~ +65℃
    Wires Red: Positive(+)
    Black: Negative(-)
    Yellow: Pattern Switch
    Cable length 500mm cable/2500mm cable+plug for magnet mounting
    Housing PC
    Cover PC
    Lens PC
    Mounting Bolt/Bracket/Magnet
    Waterproof IP67
    Packing Inner box: 290x150x58mm
    Outer box: 600x300x165mm
    Qty.: 10PCS/Carton
    Warranty 2 Years
  • Mounted by 2 bolts Mounted by 1pc bracket Mounted by 2pcs magnet

    TA94 LED 9 inches lightbar series bolt mounting bottom view

    TA94 LED 9 inches lightbar series bolt mounting bottom view

    TA94 LED 9 inches lightbar series bracket mounting bottom view

    TA94 LED 9 inches lightbar series bracket mounting bottom view

    TA94 LED 9 inches lightbar series magnet mounting bottom view

    TA94 LED 9 inches lightbar series magnet mounting bottom view

Applications
