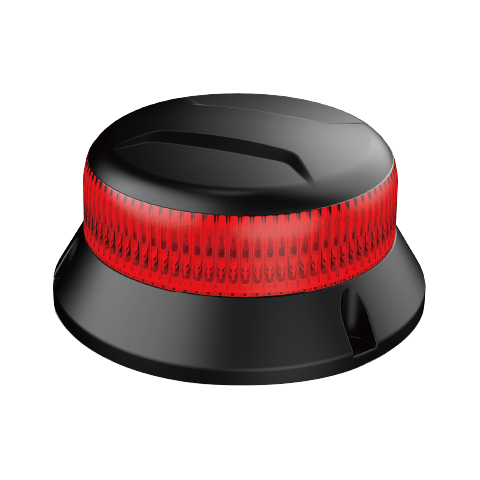

  • TC26 series micro LED beacon Red color lighting effect
  • TC26 series micro LED beacon screw mounting bottom view
  • TC26 series micro LED beacon Magnet mounting bottom view

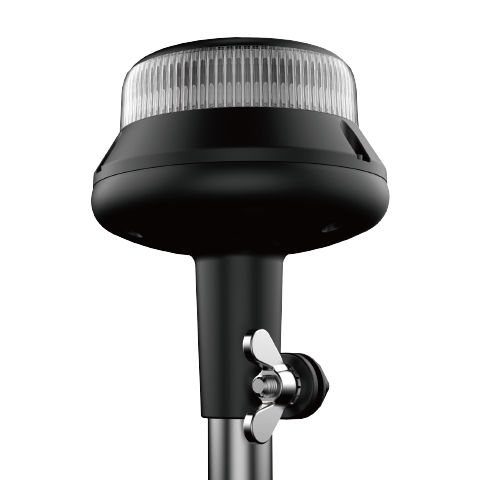

  • TC26 series LED beacon DIN pole mounting front view
  • TC26 series LED beacon mounted on car

TC26 Micro LED Beacon

Overview

A small light (only 370g, 50mm high) body with ample lighting. The TC26 Micro LED beacon is designed to capture attention with its vibrant colors, high intensity, and rapid flashing rate, effectively conveying a sense of emergency. It can provide excellent 360-degree warning illumination for police, fire, and rescue vehicles, as well as tow trucks, snowplows, school buses, and warehouse forklift trucks. Since it is only 50mm thin, it can be easily mounted onto the surface of vehicles with limited space.

Features

  • ECE R10, SAE J845 Class 1, and CISPR 25 Class3 Certified, with virtually no RFI/EMI radiation
  • Fully encapsulated for moisture, vibration, and corrosion resistance
  • High-intensity LED modules provide consistent warning performance
  • Extreme low profile with a height of only 50mm
  • Both base and cover are made of aluminum die casting, ensuring stability during extended dwell time and long life dependability
  • Screw mounting includes 500mm cable
  • 11 optional flash patterns and can be customized
  • Magnet mounting model meets the ISO-4148 standard
  • 3 mounting models available ( screw, magnet, DIN Pole )
  • 2-year warranty
Get A Quote
  • Specifications
  • Dimensions
  • Mounting
  • Approvals ECE R10/ CISPR 25 Class3, ECE R65 Class 1/ SAE J845 Class 1
    LEDs 32 PCS*0.5W
    Colors Amber/ Red/ Blue/ Red+ Blue
    Operating voltage 12/24V
    Operating temperature  -30℃~ +65℃
    Wires Red: Positive(+)
    Black: Negative(-)
    Yellow: Pattern Switch
    Cable length 500mm cable/2500mm cable+ plug for magnet mounting
    Housing PC
    Cover PC
    Lens PC
    Mounting Screw/ Magnet/ DIN Pole
    Waterproof IP67
    Net weight By bolt 370g/ PC; By DIN Pole 480g/ PC; By magnet 590g/PC
    Packing Inner box: 116x 116x 145 mm
    Outer box: 370x 250x 310 mm
    Qty.: 24PCS/ Carton, 12PCS/ Carton, 18PCS/ Carton
    Warranty 2 Years
  • Mounted by 3 PCS ST3.5*16 stainless steel screws Mounted by 1 PC magnet Mounted by DIN Pole
