XA62 Warning Lamp - Smartsun
  • XA62 series warning lamp Amber color lighting effect
  • XA62 series warning lamp Blue Amber color lighting effect
  • XA62 series warning lamp Red Blue color lighting effect
  • XA62 series warning lamp Red Amber color lighting effect
  • XA62 series warning lamp Blue color lighting effect
  • XA62 series with clear len power off
  • XA62 series warning lamp exploded view
  • XA62 series warning lamp side view 2
  • XA62 series warning lamp side view 1
  • XA62 series warning lamp back view

XA62 Warning Lamp

Overview

XA62 series high performance warning lamps are universal fit all cars, SUV, vans and trucks, motorcyles with DC 12V-24V. There are different power ranges(1W/3W) and colors(single/dual) available for satisfying various warning requirements.

Features

  • Finely designed polycarbonate lens with ECE R65 Class 2 and SAE J595 Class 1 certified output
  • ECE R10 EMC Compliance
  • 4 high intensity LEDs ensure consistent performance, low current draw
  • Fully encapsulated for moisture, vibration and corrosion resistance
  • Compact and sturdy aluminum die-cast housing with excellent heat dissipation
  • Faster and easier surface mounting via two screws
  • Various flash patterns available and can be customized
  • 2-year warranty
Get A Quote
  • Specifications

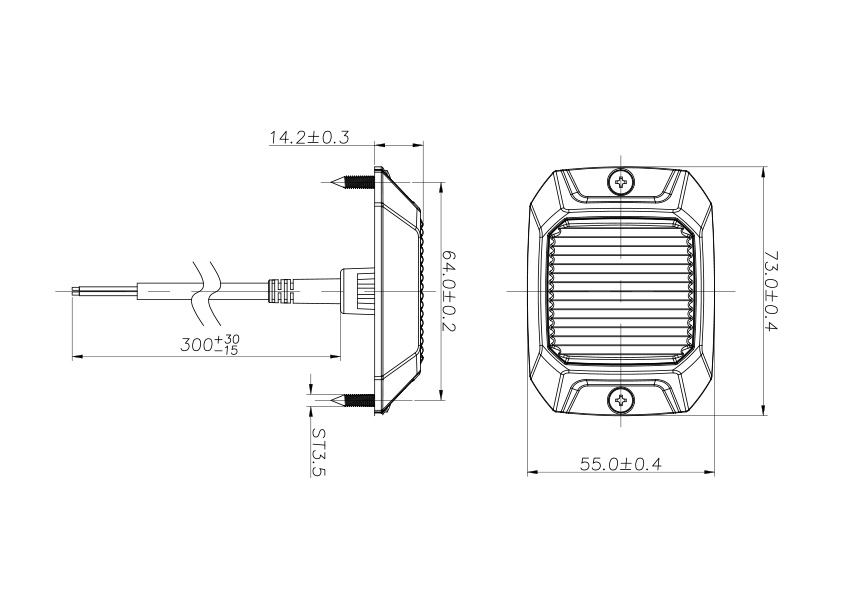

  • Dimensions
  • Mounting
  • Approvals ECE R10(EMC), ECE R65 Class 1/Class 2, SAE J595 Class 1/Class 2, California Title 13 Class B
    LEDs 4 pcs*3W
    Colors Amber/Red/Blue/Amber+Red/Amber+Blue/Red+Blue
    Operating voltage 12~24V
    Operating temperature  -30℃~ +65℃
    Wires Red: Positive(+)
    Black: Negative(-)
    Green: Pattern Switch,Synchronous
    White: Asynchronous
    Cable length 300mm
    Housing Aluminium die-casting
    Lens Clear PC
    Mounting Screw
    Waterproof IP67
    Net weight 87.5g/pc
    Packing Inner box: 60x60x85mm
    Outer box: 315x315x186mm
    Qty.: 50 Pcs/Carton
    Warranty 2 Years
  • Mounted by 2pcs ST3.5*16 stainless steel screws
