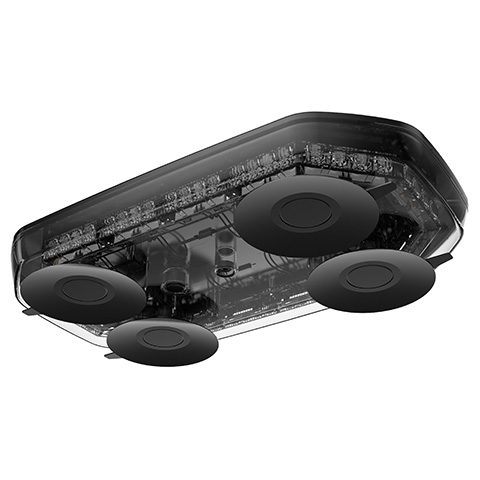

  • TA92 LED 15 inches lightbar series magnet mounting bottom view
  • TA92 LED 15 inches lightbar series bolt mounting bottom view
  • TA92 LED 15 inches lightbar series bracket mounting bottom view
  • TA92 LED 15 inches lightbar series front view
  • TA92 LED 15 inches lightbar series top bottom view
  • TA92 LED 15 inches lightbar series with cable view
  • TA92 LED 15 inches lightbar series with plug controller

TA92 15" Mini Lightbar

Overview

TA92 15-inches light bar delivers 360°emergency lighting coverage during the day or nighttime, ensuring your safety on or off the road. It is great for emergency vehicles, postal service, construction vehicles, safety warning etc. 40 PCS high-intensity LEDs with high visibility deliver great vibrant colors(amber/red/blue). IP67 waterproof design ensures year-round functionality.

Features

  • SAE J845 Class 1 and CISPR 25 Class3 Certified, virtually no RFI/EMI radiation
  • Fully encapsulated for moisture, vibration and corrosion resistance
  • 92 PCS high-quality LEDs provide consistent warning performance
  • Strong polycarbonate cover and lens are all finely molded with a streamlined appearance
  • Innovative design with fewer components ensure stability during extended dwell time
  • 4 bolts mounting includes 500mm cable
  • 12 optional flash patterns and can be customized
  • Ultra-slim body, only 29mm high
  • 360 fully glowing surface with strong overall visual effects
  • Magnet mounting model meets ISO-4148 standard(lightbar mount tightly even under emergency braking )
  • 3 mounting models available(4 bolts, magnet, bracket)
  • 2-year warranty.
Get A Quote
  • Specifications
  • Dimensions
  • Mounting
  • Approvals ECE R10/CISPR 25 Class3, ECE R65 Class 1/SAE J845 Class 1
    LEDs 92 PCS*0.5W
    Colors Amber/Red/Blue/Red+Blue
    Operating voltage 12/24V
    Operating temperature  -30℃~ +65℃
    Wires Red: Positive(+)
    Black: Negative(-)
    Yellow: Pattern Switch
    Cable length 500mm cable/2500mm cable+plug for magnet mounting
    Housing PC
    Cover PC
    Lens PC
    Mounting Bolt/Bracket/Magnet
    Waterproof IP67
    Net weight By bolt 1300g/PC; By bracket 1730g/PC; By magnet 1840g/PC
    Packing Inner box: 390x265x56mm
    Outer box: 488x405x280mm
    Qty.: 8PCS/Carton
    Warranty 2 Years
  • Mounted by 4 bolts Mounted by 2 PCS bracket Mounted by 4 PCS magnet
